Industrial Control
Control electronics and automation systems for demanding industrial environments.
Margem designs embedded control products, test equipment and integrated automation systems that connect hardware, software and field devices.
Industrial Machine Control Products
Controller units for machine operation, environmental monitoring, operator interfaces and field I/O integration.
Control Device

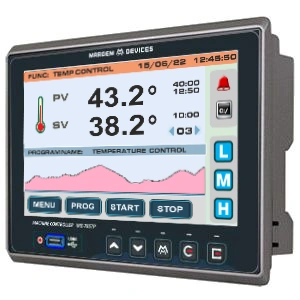

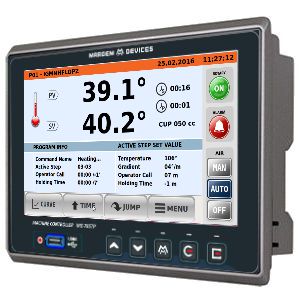

MAC-800TP
Industrial Machine Controller Unit
The MAC-800TP Machine Control Unit supports 24VDC input voltage, 4 analog inputs, 2 analog outputs, 4-20mA inputs, 2 counter inputs, 16 digital inputs and 16 digital outputs. It can be configured with 5 inch, 7 inch or 10 inch LCD panels with touch screen support, and includes 1 USB, 1 RS485, 1 RS232 and 1 Ethernet connector. The unit supports temperature, humidity and atmospheric pressure monitoring and control via internal or external PIO.
Predictive Conveyor Systems
Frequency converter and control products for vibratory conveyor operation, monitoring and process parameter adjustment.

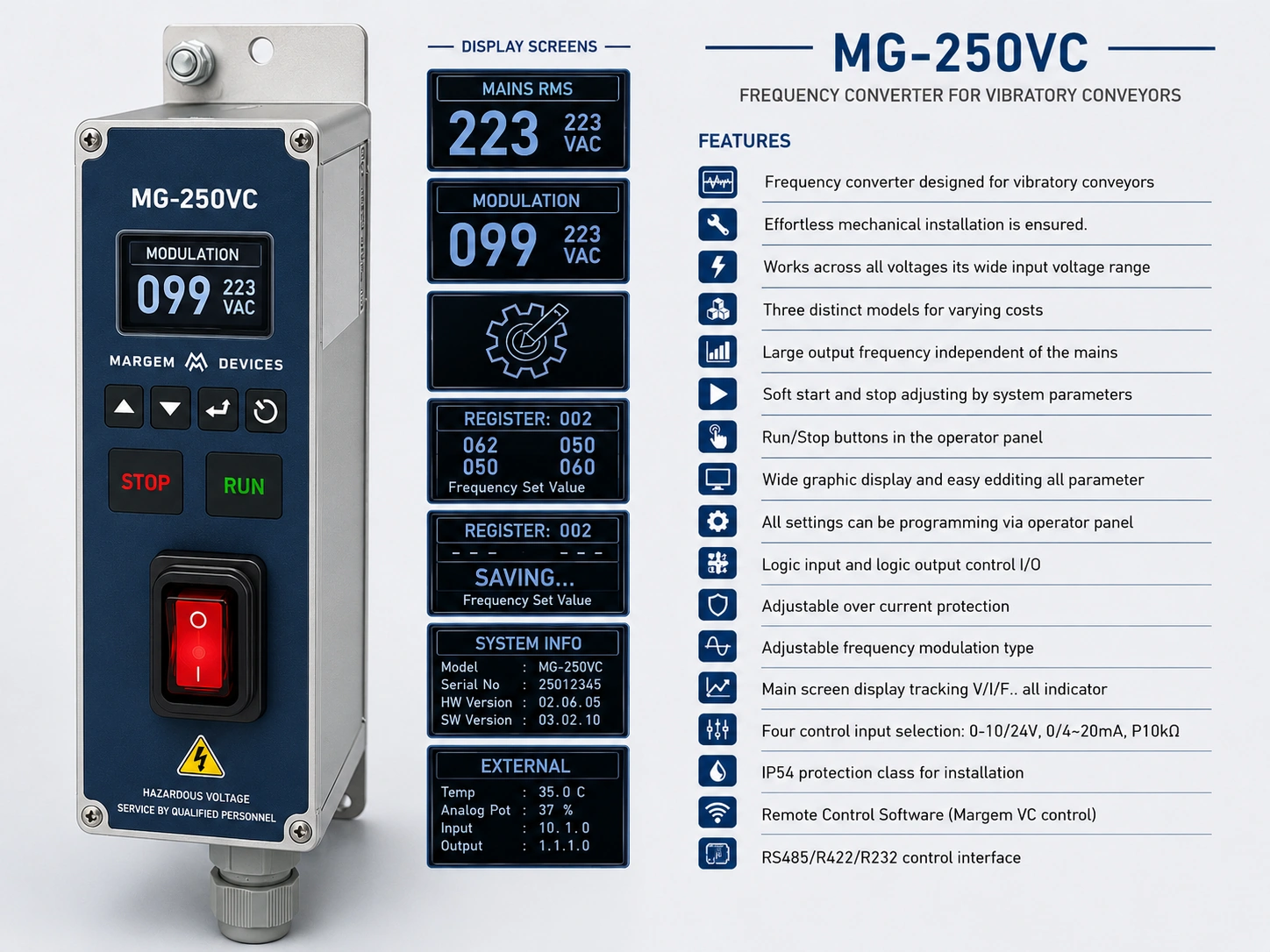

The MG-250VC is a compact and reliable frequency converter designed for vibratory conveyor applications, providing precise frequency control and stable operation over a wide input voltage range. Equipped with a high-resolution graphic display, intuitive operator interface, Ethernet connectivity, RS232/RS422/RS485 communication, and remote control software, the unit offers flexible configuration and easy operation. Advanced features such as adjustable modulation, programmable I/O, overcurrent protection, configurable analog and digital inputs, IP54 protection, and real-time monitoring make the MG-250VC an ideal solution for industrial automation and material handling systems requiring high performance and long-term reliability.
Industrial I/O and Sensor Units
Modular I/O, sensor and process control products for industrial cabinets, machine control and distributed automation systems.

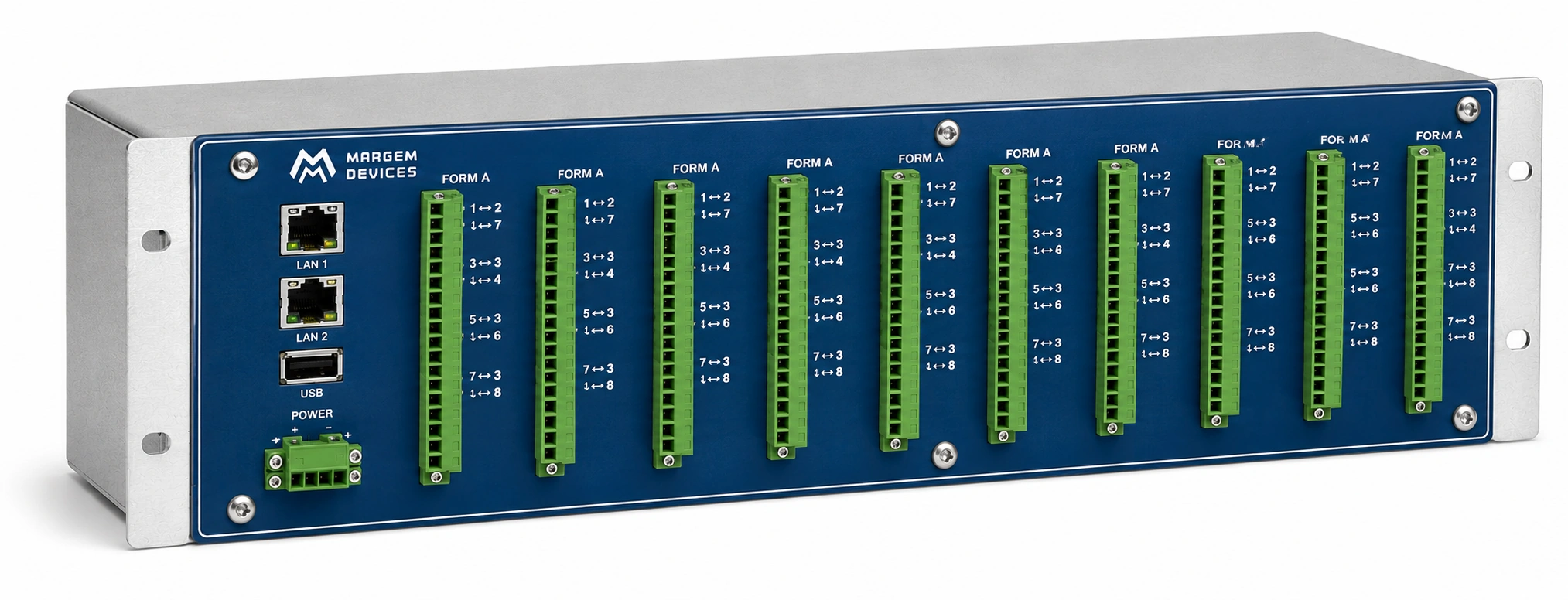

PIO-256
Remote I/O Unit
Modular PIO board with up to 256 I/O points, configurable as 128 inputs and 128 outputs. The unit supports digital outputs, 4 PWM outputs, 2 counter inputs, analog inputs, relay output options and isolated digital inputs. Dual Ethernet communication enables integration with machine controllers, monitoring systems and distributed industrial control architectures. I/O modules can be configured or replaced according to application requirements.

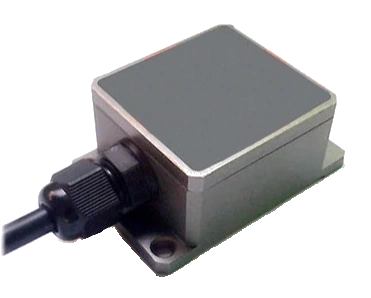

Fluxgate Compass
Industrial Sensor Unit
Fluxgate compass sensor unit for true north calculation, magnetic declination compensation and antenna/platform orientation workflows. The unit includes an internal GPS-assisted algorithm for magnetic field calculations, inclination sensing, acceleration measurement and yaw, pitch and roll output across three axes. It operates from 24VDC, is designed for IP65 environments, and supports calibration procedures including circle calibration and waypoint-based calibration.
MG-100SL
Industrial Soldering Heating Unit
Industrial soldering and controlled heating unit for edge heating, melting and process temperature applications. The unit operates from 220VAC, provides two 24V output channels for soldering/heating tips, and supports adjustable temperature control through thermostat and triac-based regulation. Operators can enter the menu interface to configure set values, process parameters and operating modes.
Control Units
Embedded controllers and interface units for machine, process and device control.
Robotic Systems
System-level design and integration for robotic stations and automated workflows.
Industrial Interfaces
Hardware and software links between sensors, actuators, operator panels and control cabinets.
Test and Production Devices
Custom electronics for test benches, production support and device validation.
Monitoring Software
Operator-facing dashboards and monitoring layers for industrial system status.
